Understanding of Meter Tag in HTML 5

Understanding of Meter Tag in HTML 5

This post explains the HTML 5 meter tag and how to create it

What is the meter tag?

I this article I am explaining the meter tag. The output of both (progress and meter) tags is the same as we will see but there is the difference that actually the meter tag is used to represent a scalar measurement within a known range. The value can be fractional.Examples

Disk uses, the relevance of a query result, the fraction of a voting population to have selected a specific candidate.

What is the difference between the progress tag and the meter tag? Progress bar is used to display the progress of a specific task. Or a progress element represents the completion progress of a task. Whereas the meter tag is used to represent guages.  We can think that a progress tag represents dynamic data whereas a meter tag represents static data.

Note:

  1. According to the W3C, the meter element should not be used to indicate progress, because to indicate the progress we have the progress tag.
  2. The meter element also does not represent a scalar value of an arbitrary range; for example, it would be wrong to use this to report a weight, or height, unless there is a known maximum value.

Syntax

The Meter tag is an inline element, the same as a header, progress and so on.

Attributes

<meter></meter>

Apart from the Global Attributes and Event Attributes, the meter tag have 6 more attributes as shown in the following table:

This is image title

The following inequalities must hold, as applicable:

  • min <= value <= max
  • min <= low <= max (if low is specified)
  • min <= high <= max (if high is specified)
  • min <= optimum <= max (if optimum is specified)
  • low <= high (if both low and high are specified)

Note: if you do not specify min or max then the range will be between 0.0 to 1.0 and the value must be in that range.

HTML DOM Meter Object

In the DOM the meter element is defined by METER that represents for HTML 5.

  • How the meter object can be accessed: using the getElementById() method you can access the element.
var x = document.getElementById("[Give id of the meter tag here]");
  • Create a meter object: You can also create the element dynamically using the createElement() method:
var x = document.createElement("METER");
  • Meter object properties: The properties of a meter object are given in the following table:

Example 1: This example will show you how can you use a meter element in HTML 5.

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="utf-8" />
</head>
<body>
   <b>Meter without value</b>
   <meter></meter>

   <br/><br/>
   <b>Meter with value but without min and max attribute</b>
   <meter value="0.8"></meter>

   <br/><br/>
   <b>Meter with value, min and max attribute</b>
   <meter min="0" max="100" value="17"></meter>

   <br/><br/>
   <b>Meter (when "min <= value < low")</b>
   <meter  min="0" max="100" value="17" low="25" high="75"></meter>

   <br/><br/>
   <b>Meter (when "high < value <= max")</b>
   <meter  min="0" max="100" value="80" low="25" high="75"></meter>

   <br/><br/>
   <b>Meter (when "low <= value <= high")</b>
   <meter  min="0" max="100" value="50" low="25" high="75"></meter>

   <br/><br/>
   <b>Meter with optimum attribute</b>
   <meter  min="0" max="100" value="24" low="25" high="75" optimum="80"></meter>

   <br/><br/>
   <b>Meter with optimum attribute</b>
   <meter  min="0" max="100" value="80" low="25" high="75" optimum="20"></meter>

</body>
</html>

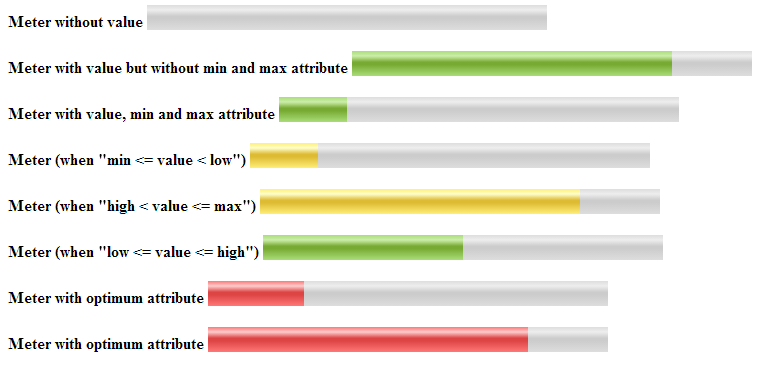

The output of example 1:

This is image title

Styling meter element: we can define various types of styles for the meter element using a progress selector.Example 2: This example will explain how to increase the width and height of a meter element.

Example 2: This example will explain how to increase the width and height of a meter element.

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="utf-8" />
   <style>
   meter {
     width: 400px;
     height: 25px;
   }
   </style>
</head>
<body>
   <b>Meter without value</b>
   <meter></meter>

   <br/><br/>
   <b>Meter with value but without min and max attribute</b>
   <meter value="0.8"></meter>

   <br/><br/>
   <b>Meter with value, min and max attribute</b>
   <meter min="0" max="100" value="17"></meter>

   <br/><br/>
   <b>Meter (when "min <= value < low")</b>
   <meter  min="0" max="100" value="17" low="25" high="75"></meter>

   <br/><br/>
   <b>Meter (when "high < value <= max")</b>
   <meter  min="0" max="100" value="80" low="25" high="75"></meter>

   <br/><br/>
   <b>Meter (when "low <= value <= high")</b>
   <meter  min="0" max="100" value="50" low="25" high="75"></meter>

   <br/><br/>
   <b>Meter with optimum attribute</b>
   <meter  min="0" max="100" value="24" low="25" high="75" optimum="80"></meter>

   <br/><br/>
   <b>Meter with optimum attribute</b>
   <meter  min="0" max="100" value="80" low="25" high="75" optimum="20"></meter>

</body>
</html>

Output of the Example 2:

This is image title

More in styling:

  • WebKit/Blink Browser: like Opera, Googe Chrome and Safari
  • FireFox
  • Internet Explorer

1. WebKit/Blink Browser: According to webkit.org, we can have 5 different pseudo classes that are given in the following table.

This is image title

Example 3:  This example explains how to reset the appearance of a meter element. To reset the appearance we use -webkit-appearance:none;

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="utf-8" />
<style>
meter {
  width: 300px;
  height: 25px;
  -webkit-appearance: none; /* Reset appearance */
  border: 1px solid #ccc;
  border-radius: 5px;
}
</style>
</head>
<body>
<b>Meter without value</b>
<meter></meter>

<br/><br/>
<b>Meter with value but without min and max attribute</b>
<meter value="0.8"></meter>

<br/><br/>
<b>Meter with value, min and max attribute</b>
<meter min="0" max="100" value="17"></meter>

<br/><br/>
<b>Meter (when "min <= value < low")</b>
<meter  min="0" max="100" value="17" low="25" high="75"></meter>

<br/><br/>
<b>Meter (when "high < value <= max")</b>
<meter  min="0" max="100" value="80" low="25" high="75"></meter>

<br/><br/>
<b>Meter (when "low <= value <= high")</b>
<meter  min="0" max="100" value="50" low="25" high="75"></meter>

<br/><br/>
<b>Meter with optimum attribute</b>
<meter  min="0" max="100" value="24" low="25" high="75" optimum="80"></meter>

<br/><br/>
<b>Meter with optimum attribute</b>
<meter  min="0" max="100" value="80" low="25" high="75" optimum="20"></meter>

</body>
</html>

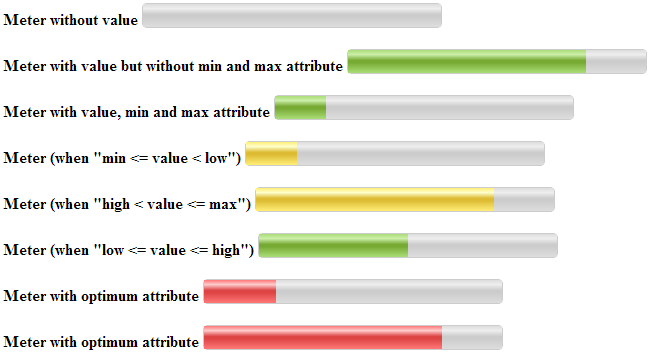

Output of the Example 3:

This is image title

Example 4: How to render the background container?

According to the preceding table I have described that we can render the container using the -webkit-meter-bar pseudo-class, so to apply the rendering I am using the following code:

meter::-webkit-meter-bar {
  background: none;
  background-color: whiteSmoke;
  box-shadow: 0 5px 5px -5px #00F inset;
  border: 1px solid #0ff;
  border-radius: 5px;
}

Complete Code

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="utf-8" />
<style>
meter {
  width: 300px;
  height: 25px;
  -webkit-appearance: none; /* Reset appearance */
  border: 1px solid #F0f;
  border-radius: 5px;
}
meter::-webkit-meter-bar {
  background: none;
  background-color: whiteSmoke;
  box-shadow: 0 5px 5px -5px #00F inset;
  border: 1px solid #0ff;
  border-radius: 5px;
}

</style>
</head>
<body>
<b>Meter without value</b>
<meter></meter>

<br/><br/>
<b>Meter with value but without min and max attribute</b>
<meter value="0.8"></meter>

<br/><br/>
<b>Meter with value, min and max attribute</b>
<meter min="0" max="100" value="17"></meter>

<br/><br/>
<b>Meter (when "min <= value < low")</b>
<meter  min="0" max="100" value="17" low="25" high="75"></meter>

<br/><br/>
<b>Meter (when "high < value <= max")</b>
<meter  min="0" max="100" value="80" low="25" high="75"></meter>

<br/><br/>
<b>Meter (when "low <= value <= high")</b>
<meter  min="0" max="100" value="50" low="25" high="75"></meter>

<br/><br/>
<b>Meter with optimum attribute</b>
<meter  min="0" max="100" value="24" low="25" high="75" optimum="80"></meter>

<br/><br/>
<b>Meter with optimum attribute</b>
<meter  min="0" max="100" value="80" low="25" high="75" optimum="20"></meter>

</body>
</html>

Output of the Example 4:

This is image title

Example 5: This example explains how to render the value of the meter element, it means inside the container how to apply the rendering.

According to the table we can render the meter elements using the following pseudo classes:

-webkit-meter-optimum-value
-webkit-meter-suboptimum-value
-webkit-meter-even-less-good-value

Code: I am using the following code:

  1. For -webkit-meter-optimum-value:
meter::-webkit-meter-optimum-value {
  box-shadow: 0 5px 5px -5px #999 inset;
  background-image: linear-gradient(
    25deg,
    #002900 5%,
    #003D00 5%,
    #005200 25%,
    #007A00 25%,
    #00A300 55%,
    #00CC00 55%,
    #33D633 95%,
    #66E066 95%,
    #99EB99 100%
  );
  background-size: 100% 100%;
}
  1. For -webkit-meter-suboptimum-value:
meter::-webkit-meter-suboptimum-value {
  box-shadow: 0 5px 5px -5px #999 inset;
  background-image: linear-gradient(
    25deg,
    #333300 5%,
    #666600 5%,
    #999900 25%,
    #CCCC00 25%,
    #FFFF00 55%,
    #FFFF33 55%,
    #FFFFCC 95%,
    #FF3300 95%,
    #B22400 100%
  );
  background-size: 100% 100%;
}
  1. For -webkit-meter-even-less-good-value:
meter::-webkit-meter-even-less-good-value  {
  box-shadow: 0 5px 5px -5px #999 inset;
  background-image: linear-gradient(
    25deg,
    #000000 5%,
    #330000 5%,
    #660000 25%,
    #990000 25%,
    #CC0000 55%,
    #FF0000 55%,
    #FF3333 95%,
    #FF6666 95%,
    #FF9999 100%
  );
  background-size: 100% 100%;
}

Complete Code:

<!DOCTYPE html>
<html lang="en">
   <head>
      <meta charset="utf-8" />
      <style>
         meter {
         width: 300px;
         height: 25px;
         -webkit-appearance: none; /* Reset appearance */
         border: 1px solid #F0f;
         border-radius: 5px;
         }
         meter::-webkit-meter-bar {
         background: none;
         background-color: whiteSmoke;
         box-shadow: 0 5px 5px -5px #00F inset;
         border: 1px solid #0ff;
         border-radius: 5px;
         }
         meter::-webkit-meter-optimum-value {
         box-shadow: 0 5px 5px -5px #999 inset;
         background-image: linear-gradient(
         25deg,
         #002900 5%,
         #003D00 5%,
         #005200 25%,
         #007A00 25%,
         #00A300 55%,
         #00CC00 55%,
         #33D633 95%,
         #66E066 95%,
         #99EB99 100%
         );
         background-size: 100% 100%;
         }
         meter::-webkit-meter-suboptimum-value {
         box-shadow: 0 5px 5px -5px #999 inset;
         background-image: linear-gradient(
         25deg,
         #333300 5%,
         #666600 5%,
         #999900 25%,
         #CCCC00 25%,
         #FFFF00 55%,
         #FFFF33 55%,
         #FFFFCC 95%,
         #FF3300 95%,
         #B22400 100%
         );
         background-size: 100% 100%;
         }
         meter::-webkit-meter-even-less-good-value  {
         box-shadow: 0 5px 5px -5px #999 inset;
         background-image: linear-gradient(
         25deg,
         #000000 5%,
         #330000 5%,
         #660000 25%,
         #990000 25%,
         #CC0000 55%,
         #FF0000 55%,
         #FF3333 95%,
         #FF6666 95%,
         #FF9999 100%
         );
         background-size: 100% 100%;
         }
      </style>
   </head>
   <body>
      <b>Meter without value</b>
      <meter></meter>
      <br/><br/>
      <b>Meter with value but without min and max attribute</b>
      <meter value="0.8"></meter>
      <br/><br/>
      <b>Meter with value, min and max attribute</b>
      <meter min="0" max="100" value="17"></meter>
      <br/><br/>
      <b>Meter (when "min <= value < low")</b>
      <meter  min="0" max="100" value="17" low="25" high="75"></meter>
      <br/><br/>
      <b>Meter (when "high < value <= max")</b>
      <meter  min="0" max="100" value="80" low="25" high="75"></meter>
      <br/><br/>
      <b>Meter (when "low <= value <= high")</b>
      <meter  min="0" max="100" value="50" low="25" high="75"></meter>
      <br/><br/>
      <b>Meter with optimum attribute</b>
      <meter  min="0" max="100" value="24" low="25" high="75" optimum="80"></meter>
      <br/><br/>
      <b>Meter with optimum attribute</b>
      <meter  min="0" max="100" value="80" low="25" high="75" optimum="20"></meter>
   </body>
</html>

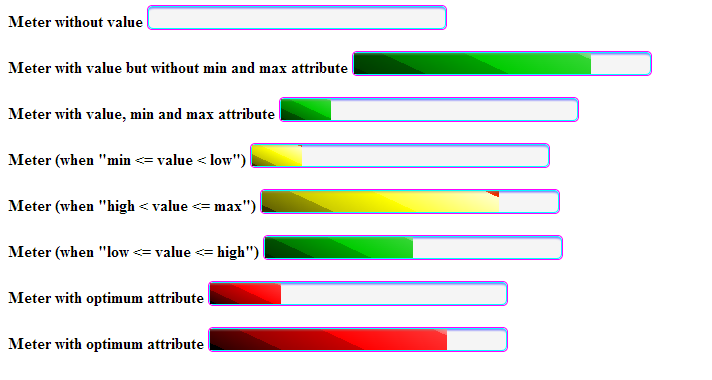

Output of the Example 5:

This is image title

2. FireFox Browser: For the FireFox browser use "-moz" instead of "-webkit" and everything else is the same.

3. Internet Explorer: In IE you can use all these properties directly, like appearance.

Thank you for reading ! I hope this tutorial will surely help!

HTML HTML5 Metertag tutorial html

What's new in Bootstrap 5 and when Bootstrap 5 release date?

How to Build Progressive Web Apps (PWA) using Angular 9

What is new features in Javascript ES2020 ECMAScript 2020

Deno Crash Course: Explore Deno and Create a full REST API with Deno

How to Build a Real-time Chat App with Deno and WebSockets

Convert HTML to Markdown Online

HTML entity encoder decoder Online

Random Password Generator Online

HTML Color Picker online | HEX Color Picker | RGB Color Picker

HTML Introduction - HTML Tutorial For Beginners - DataFlair

HTML Introduction - Learn what is HTML, History of HTML, its benefits and limitations, HTML applications, HTML5 and its features, what's new in HTML5.

HTML Basics to Learn HTML for Web Development

HTML is the mark-up language most websites are written in. In this article, we will delve into the most basics of HTML like tags and elements that are of utmost importance while writing any code in HTML. These tags help in the structuring and display of content on the web pages.

HTML 5 tutorial - How to view Google Maps in the HTML Page?

In this HTML 5 tutorial, we will show you how to view Google Maps in the HTML page in just a few lines of HTML tags, CSS, and Javascript codes.

HTML 5 Tutorial: How to create a table using HTML tags and Stylesheet (CSS)

In this article, we want to show you how to create a table using HTML tags and Stylesheet (CSS). HTML table may vary depends on data and style requirements. Sometimes, in the real application, we use an HTML table as a layout of the Email template in HTML format.
