Kio estas Layer-1 kaj Layer-2 Blockchain Technology?
En ĉi tiu afiŝo, vi lernos Kio estas Layer-1 kaj Layer-2 Blockchain Technology and Scaling Solutions?
En blokĉena teknologio, la termino "skalado" rilatas al pliigo de la traflua indico, mezurita laŭ la nombro da transakcioj por sekundo (TPS). Ĉar kriptaj moneroj fariĝas pli vaste uzataj en ĉiutaga vivo, kreante tavolojn por reto-sekureco, pli bonaj rekordoj, ktp.
Tavolo 1 en la malcentralizita ekosistemo estas blokĉeno. Aliflanke, Tavolo 2 estas triaparta integriĝo kun Tavolo 1 por pliigi la nombron da nodoj kaj tiel sistema trairo. Multaj Tavolo 2 blokĉeno solvoj nuntempe estas efektivigitaj. Ĉi tiuj solvoj uzas inteligentajn kontraktojn por aŭtomatigi transakciojn.
Tavolo 1 kaj Tavolo 2
Blockchain-teknologio ofertas multajn avantaĝojn kiel pliigita sekureco, ebligas pli facilajn transakciojn kaj helpas konservi rekordojn. Tamen, ĉar ĝi plivastiĝis, iom post iom aperis kelkaj problemoj. Unu el ĉi tiuj problemoj estas skaleblo.
Kun blokĉeno, ĉiu transakcio en malcentralizita sistemo devas trairi plurajn paŝojn. Ĉi tiu procezo prenas multan tempon kaj komputikan potencon. Por plibonigi la pretigkapablon de la blokĉeno, la programistoj enkondukas Tavolon 2-skalan solvon en la strukturon.
Kial gravas la skalebleco de la blokĉeno?
Fakuloj havas multajn manierojn difini "skaleblecon" depende de la vidpunkto de ĉiu persono. Esence, tamen, blokĉena skaleblo estas la kapablo de sistemo provizi kompletan sperton por ĉiu uzanto, sendepende de la tuta nombro de uzantoj en iu ajn momento en tempo.
La esprimo "trafluo" rilatas al la nombro da transakcioj kiujn la sistemo procesas je sekundo (TPS). Dum pagkompanioj / kanaloj kiel Visa procesas preskaŭ 20,000 TPS uzante la elektronikan pagan reton VisaNet, la ĉefa bitcoin-ĉeno povas nur procesi 3 ĝis 7 TPS.
La granda diferenco inter la supraj niveloj povas surprizi multajn, sed estas kialo por ĉio. Bitcoin uzas malcentralizitan sistemon dum VisaNet funkcias per centralizita sistemo. Bitcoin uzas pli da potenco kaj prilaborado por protekti la privatecon de la uzanto. Ĉiu transakcio de datumoj devas trairi multajn paŝojn, inkluzive de akcepto, minado, distribuo kaj validigo de la reto de nodoj.
Kun kriptaj moneroj atenditaj iĝi nemalhavebla forto en la komerca mondo, blokĉenaj programistoj serĉas vastigi la atingon de prilaborado. Kreante multoblajn tavolojn de blokĉeno kaj optimumigante Tavolon 2-skaladon, ili volis akceli pretigtempojn kaj pliigi la TPS-nombrecon.
Bitcoin luktas kun manko de skaleblo
Origine, Bitcoin estis simpla blokĉeno por uzantoj por sendi kaj ricevi ciferecan monon. Tamen, ĝi luktis kun skaleblo ekde sia komenco, do ĉiuj scivolis: kio se pli kaj pli da homoj komencus uzi Bitcoin?
Ĉi tiu demando indikas urĝan retan problemon. Ĉiu sistemo havas certan bendolarĝon kaj povas nur procesi ĝis certa nombro da transakcioj je sekundo. Krome, ĉiu transakcio devas esti reviziita en malcentralizita sistemo kaj tial postulas multan stokan spacon.
Ĝis 2021, kiam Bitcoin iĝas ĉiea, tiu demando estos respondita per transakcioj inundante la tagalon, rezultigante pli malrapidajn pretigajn rapidecojn.
Kial la nuna blokĉeno bezonas teknologion de Tavolo 2?
Ekzemple, ĉar Ethereum havas konsentan mekanismon, ĝi ebligas diversajn malcentralizitajn aplikojn. En blokĉena teknologio, la konsenta mekanismo estas misfunkcia tolerema sistemo, kiu kondukas al interkonsentoj pri ununura reto-ŝtato inter multaj distribuitaj nodoj. Ĉi tiuj protokoloj certigas, ke ĉiuj nodoj konsentas pri transakcioj kaj estas sinkronigitaj. Ĉi tio ege malfacilas anstataŭigi aŭ haki la Ethereum-ĉenon.
Danke al la stabileco kaj sekureco de Ethereum, la ICO-maniero evoluis al fenomeno, kiu kondukis al novaj moneroj "eksperantaj kiel fungoj" sur ĉi tiu blokĉeno. Ĉi tio pliigas la nombron da uzantoj kaj la nombron da transakcioj faritaj sur Ethereum. Kiam la sistemo estas troŝarĝita, la transakciaj kotizoj - aŭ "gasaj" kotizoj, pagitaj al la partioj pritraktantaj transakciojn sur la reto Ethereum pliiĝas.
Kiam la blokĉena reto estas ŝtopita, atendataj transakcioj sur la stokado ĉesas kaj daŭras pli longe. Por solvi la problemon, ministoj komencis prioritati transakciojn kun pli altaj gasprezoj por konfirmo. Ĉi tio plu pliigas la minimuman koston necesan por plenumi transakcion.
La prezciklo, kiu altigas la prezojn de gaso, plimalbonigas la aferojn por ĉiuj. Tavolo 2-skalado celas solvi ĉi tiun problemon kaj redukti transakciajn kostojn.
Tavolo 1 problemo
Tavolo 1-reto estas blokĉeno en malcentralizita sistemo, tipe Bitcoin kaj Ethereum.
Solvo de skalo de Tavolo 1 ŝanĝas la suban blokĉenan protokolon por permesi skaleblon. La reguloj de la protokolo estas adaptitaj sekve por pliigi la transakcian kapablon kaj rapidecon. Kiel rezulto, la blokĉeno prilaboras pli da datumoj kaj altiras pli da uzantoj.
La skalado tra tavolo 1 blokĉeno povas esti komprenita jene:
- Pliigita bloka konfirmrapideco.
- Pliigu la datumtenadkapaciton de bloko.
Kunigitaj, ĉi tiuj skalaj solvoj pliigas la trairon de la reto. Tamen, konsiderante la kreskantan nombron da blokĉenaj uzantoj, Tavolo 1 ŝajnas postresti malantaŭ la celita celo. Jen kelkaj el la mankoj de la sistemo:
Neefika konsenta protokolo
Blockchain Layer 1 ankoraŭ uzas la malnovan kaj maloportunan PoW-konsentan mekanismon.
Kvankam ĉi tiu mekanismo estas pli sekura ol aliaj, ĝia rapideco malrapidigas la sistemon. Mekanismo per kiu ministoj bezonas komputikan potencon por solvi ĉifritajn algoritmojn. Tial, ĝi ĝenerale bezonas pli da pretigpovo kaj tempo.
Solvo: PoS-konsento povas esti uzata anstataŭe. Ĉi tio ankaŭ estas la konsento, kiun Ethereum 2.0 uzos. Ĉi tiu konsenta mekanismo validas novajn blokojn de transakciaj datumoj laŭ la staking de la partoprenantoj en la reto, kio faras la procezon pli efika.
Trolabora laborŝarĝo
Ĉar la nombro da uzantoj pliiĝas, ankaŭ kreskas la laborŝarĝo sur la Tavolo 1-blokĉeno. Tial la pretiga rapideco kaj kapablo iom post iom malpliiĝas.
Solvo: La skalebla solvo al ĉi tiu problemo estas sharding. Simple, sharding rompas la laboron validigi kaj validigi transakciojn en malgrandajn, regeblajn pecojn. Kiel rezulto, la laborkvanto estas distribuita tra la reto tiel ke pli da nodoj povas uzi la komputadpotencon.
Ĉar la reto prilaboras fragmentojn paralele, pluraj transakcioj povas esti procesitaj sinsekve samtempe.

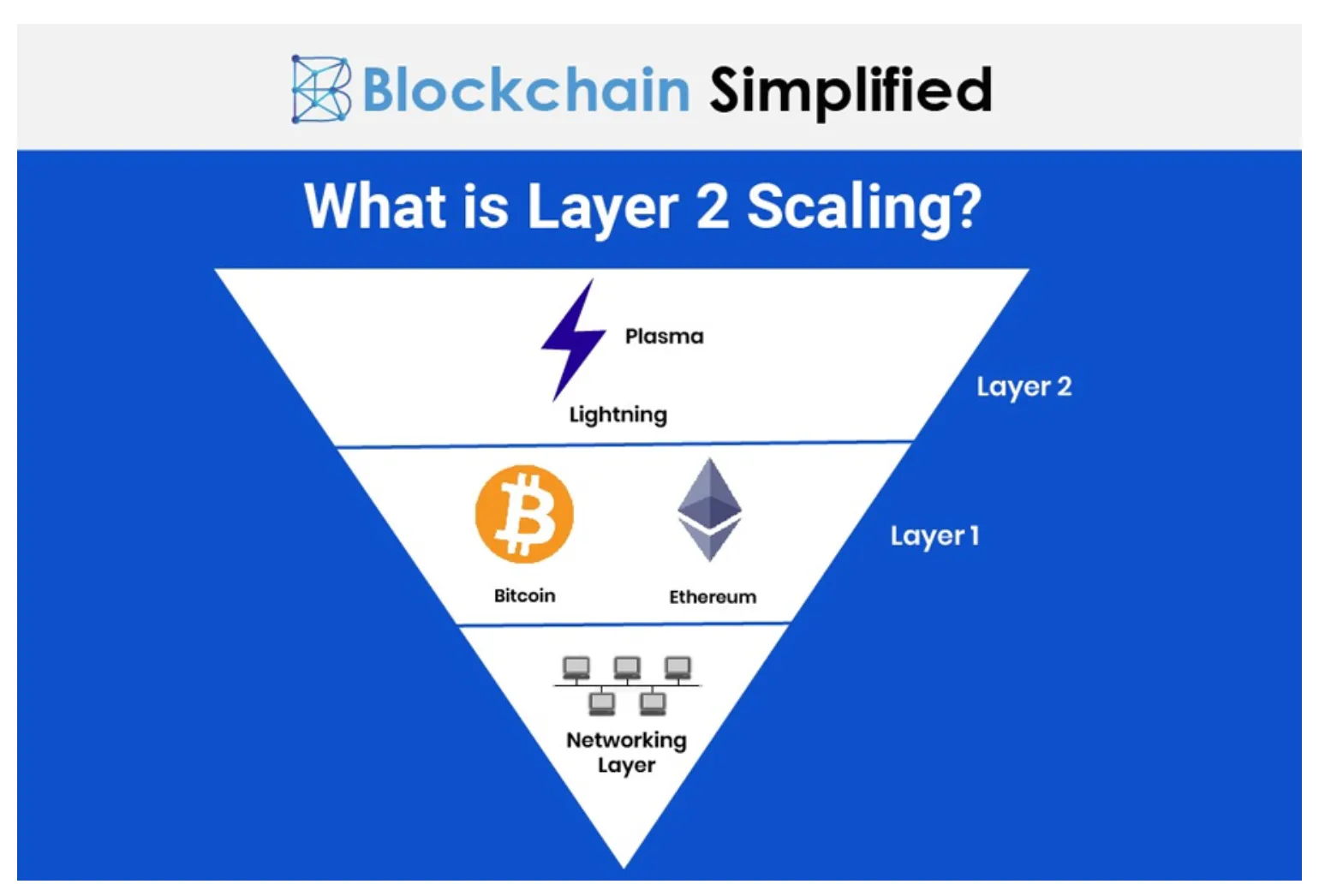

Solvo por grimpi tavolon 2
Blockchain-tavolo 2 funkcias supre de la originala tavolo por plibonigi efikecon. Subkontraktante transakciojn, Tavolo 2 prenas parton de la ŝarĝo de la Tavolo 1-blokĉeno kaj enmetas transakciojn en malsaman sisteman arkitekturon.
Tiam blokĉena tavolo 2 prilaboras la transakcion kaj raportas al tavolo 1 por kompletigi la rezultojn. Ĉar la plimulto de la datumtraktadŝarĝo falas sur ĉi tiu kohera malantaŭa arkitekturo, retŝtopiĝo estas minimumigita: La Tavolo 1-blokĉeno ne nur estas malpli ŝtopita, ĝi estas ankaŭ pli skalebla.
Ekzemplo de tavolo 1 blokĉeno estas Bitcoin, tavolo 2-skala solvo estas la Lightning Network. Lightning Network procesas kaj raportas al transakcioj sur Bitcoin. Kiel rezulto, Lighting Network pliigas la pretigan rapidon sur la Bitcoin-blokoĉeno. Krome, la Lightning Network alportas inteligentajn kontraktojn al la blokĉeno Bitcoin Layer 1.
Jen kelkaj aliaj Skalaj solvoj de Tavolo 2:
Interliga Blokoĉeno (Plasmo)
La interŝlosita blokĉeno estas tavolo 2 blokĉeno kiu funkcias supre de tavolo 1 blokĉeno; esence, la tavolo 1 blokĉeno fiksas la parametrojn, dum la tavolo 2 nestas la procezan ekzekuto.
Povas ekzisti multoblaj niveloj de blokĉeno en la ĉefa ĉeno, kiel tipa kompania strukturo. Anstataŭ lasi la tutan laboron al unu persono (ekz. manaĝero), manaĝero atribuas taskojn al subulo, kiu raportas al la manaĝero kiam ili plenumis la respektivan taskon. Ĉi tio malpezigas la administranton kaj samtempe plibonigas skaleblon.
La OMG-Plasma Projekto, ekzemple, funkcias kiel tavolo 2-blokĉeno por la Ethereum-tavola 1-protokolo por certigi pli malmultekostajn kaj pli rapidajn transakciojn.
Statuskanaloj
Statuskanaloj ebligas dudirektan komunikadon inter blockchai-partoprenantoj. Ĉi tio ebligas al vi mallongigi atendotempojn ĉar neniuj triaj (ekz. ministoj) estas implikitaj en la procezo.
Ŝtataj kanaloj funkcias jene:
– Laŭ la inteligenta kontrakto, la partoprenantoj anticipe konsentas bloki parton de la baza tavolo.
– Vi povas tiam interagi rekte unu kun la alia, forigante la bezonon de ministoj.
– Post kiam la tuta transakcio estis farita, ili resendas la finan kanalan statuson.
Kaj la Reto Raiden sur Ethereum kaj la Reto Lightning sur Bitcoin estas bonaj ekzemploj de registaraj kanaloj. Lightning Network permesas al partoprenantoj fari serion de mikrotransakcioj ene de specifa tempoperiodo. Dume, Raiden ebligas al ĉeestantoj plenumi inteligentajn kontraktojn per privata kanalo.
Ŝtataj kanaloj kiel la Lightning Network ankaŭ estas tute sekuraj, ĉar nur la partoprenantoj scias pri la transakcio. Aliflanke, la blokĉeno de Ethereum Layer 1 registras ĉiujn transakciojn en publike kontrolebla ĉeflibro.
Flanka ĉeno
Simile al registaraj kanaloj kiel Lightning Network kaj Smart Contracts, flankĉenoj ankaŭ reprezentas skalan solvon por tavola 2 blokĉena teknologio. Flankĉeno estas komercebla ĉeno, kiu ebligas grandan nombron da transakcioj. Ĝi havas interkonsentmekanismon kiu estas sendependa de la origina tavolo. La mekanismo estas optimumigita por plibonigi skaleblon kaj pretigan rapidecon. En ĉi tiu situacio, la ĉefa ĉeno devas konfirmi transakciajn registrojn, konservi sekurecon kaj trakti disputojn.
Flankĉenoj diferencas de registaraj kanaloj pro tio ke ili publike registras ĉiujn transakciojn en la ĉeflibro. Krome, se flankĉeno suferas sekurecan rompon, ĝi havas neniun efikon al aliaj flankĉenoj aŭ la ĉefĉeno de la baza tavolo.
Layer-1 kaj Layer-2 Blockchain Scaling Solutions
Dum blokĉena teknologio pruvas sin kiel nova kolono de la tutmonda ekonomio, ĝia suba strukturo de malcentralizitaj retoj alfrontas unikan defion konatan kiel la Blockchain Trilemo: la ekvilibra ago inter malcentralizo, sekureco kaj skaleblo ene de blokĉena infrastrukturo.
Blokĉena malcentralizo rilatas al la signifa distribuo de komputika potenco kaj konsento tra reto, dum sekureco reflektas la defendojn de blokĉena protokolo kontraŭ malicaj aktoroj kaj retaj atakoj. Ambaŭ estas konsiderataj ne-intertrakteblaj al la funkcio de blokĉena reto.
Ankaŭ esenca estas skaleblo, kiu rilatas al la kapablo de blokĉena reto subteni altan transakcian trairon kaj estontan kreskon. Skalebleco estas decida ĉar ĝi reprezentas la nuran manieron por blokĉenaj retoj racie konkuri kun heredaj, centralizitaj platformoj kun rapidaj setltempoj. Ofte uzata komparo por indiki la golfon en skaleblo estas, ke Bitcoin procesas inter 4-7 transakcioj por sekundo (TPS). Vizo, aliflanke, procesas proksimume 1,700 TPS. Por konkuri kun ĉi tiuj ekzistantaj sistemoj, blokĉena teknologio devas egali aŭ superi ĉi tiujn altajn nivelojn de skaleblo. Nun ekzistas tuta subsektoro de la blokĉena industrio, kiu laboras por plibonigi skaleblon.
Feliĉe, tuta nova generacio de blokĉenoj kaj skalaj solvoj konstruitaj specife por solvi ĉi tiun problemon pri transakcia kapacito eksponente pliigas la skalo-limojn de blokĉeno kaj faras signifan progreson. Ĉi tiuj projektoj traktas skaleblon en du malsamaj manieroj: Tavolo-1 kaj Tavolo-2-skalsolvoj.
Layer-1 Scaling Solutions
En la malcentralizita ekosistemo, Layer-1-reto rilatas al blokĉeno, dum Layer-2-protokolo estas triaparta integriĝo, kiu povas esti uzata kune kun Layer-1-blokĉeno. Bitcoin, Litecoin, kaj Ethereum, ekzemple, estas Layer-1 blokĉenoj. Layer-1-skalaj solvoj pliigas la bazan tavolon de la blokĉena protokolo mem por plibonigi skaleblon. Kelkaj metodaroj estas nuntempe disvolvataj - kaj praktikataj - kiuj plibonigas rekte la skaleblon de blokĉenaj retoj.
Jen kiel ĝi funkcias: Layer-1-solvoj ŝanĝas la regulojn de la protokolo rekte por pliigi transakcian kapaciton kaj rapidecon, dum ili akceptas pli da uzantoj kaj datumoj. Layer-1-skalaj solvoj povas implici, ekzemple, pliigi la kvanton da datenoj enhavita en ĉiu bloko, aŭ akceli la rapidecon ĉe kiu blokoj estas konfirmitaj, por pliigi totalan retan trairon.
Aliaj fundamentaj ĝisdatigoj al blokĉeno por atingi retan skalon de Layer-1 inkluzivas:
Interkonsentaj protokolaj plibonigoj: Kelkaj interkonsentmekanismoj estas pli efikaj ol aliaj. Pruvo de Laboro (PoW) estas la konsenta protokolo nuntempe uzata en popularaj blokĉenaj retoj kiel Bitcoin. Kvankam PoW estas sekura, ĝi povas esti malrapida. Tial multaj pli novaj blokĉenaj retoj favoras la konsentan mekanismon Proof-of-Stake (PoS). Anstataŭ postuli ministojn solvi kriptografiajn algoritmojn uzante grandan komputikan potencon, PoS-sistemoj prilaboras kaj validigas novajn blokojn de transakciaj datumoj bazitaj sur partoprenantoj, kiuj investas flankajn en la reto.
Kun Ethereum 2.0, Ethereum transiros al PoS-konsenta algoritmo, kiu atendas drame kaj fundamente pliigi la kapablon de la reto Ethereum dum pliigas malcentralizon kaj konservas retan sekurecon.
Sharding: Sharding estas mekanismo adaptita de distribuitaj datumbazoj, kiu fariĝis unu el la plej popularaj Layer-1-skalaj solvoj, malgraŭ ĝia iom eksperimenta naturo ene de la blokĉena sektoro. Sharding implicas rompi la staton de la tuta blokĉena reto en apartajn datumarojn nomitajn "fragmentoj" - pli regebla tasko ol postuli ĉiujn nodojn konservi la tutan reton. Ĉi tiuj retaj pecetoj estas samtempe prilaboritaj paralele de la reto, ebligante sinsekvan laboron pri multaj transakcioj.
Plue, ĉiu retnodo estas asignita al aparta peceto anstataŭ konservi kopion de la blokĉeno en ĝia tuteco. Individuaj pecetoj disponigas pruvojn al la ĉefĉeno kaj interagas unu kun la alia por kunhavi adresojn, ekvilibrojn kaj ĝeneralajn statojn uzante trans-segmentajn komunikadprotokolojn. Ethereum 2.0 estas unu altprofila blokĉena protokolo, kiu esploras pecetojn, kune kun Zilliqa, Tezos kaj Qtum.
Layer-2 Skalaj Solvoj
Tavolo-2 rilatas al reto aŭ teknologio, kiu funkcias supre de subesta blokĉena protokolo por plibonigi ĝian skaleblon kaj efikecon. Ĉi tiu kategorio de skalaj solvoj implicas ŝanĝi parton de la transakcia ŝarĝo de blokĉeno protokolo al apuda sistema arkitekturo, kiu tiam pritraktas la plej grandan parton de la pretigo de la reto kaj nur poste raportas reen al la ĉefa blokĉeno por fini siajn rezultojn. Abstraktante la plimulton de datumtraktado al helpa arkitekturo, la baztavola blokĉeno fariĝas malpli ŝtopita - kaj finfine pli skalebla.
Ekzemple, Bitcoin estas Tavolo-1-reto, kaj la Lightning-Reto estas Tavolo-2-solvo konstruita por plibonigi transakciajn rapidojn tiamaniere en la Bitcoin-reto. Aliaj ekzemploj de Layer-2-solvoj inkluzivas:
Nestitaj blokĉenoj: Nestita blokĉeno estas esence blokĉeno ene - aŭ, prefere, sur - alia blokĉeno. La nestita blokĉeno-arkitekturo tipe implikas ĉefan blokĉenon kiu fiksas parametrojn por pli larĝa reto, dum ekzekutoj estas entreprenitaj sur interligita reto de sekundaraj ĉenoj. Multoblaj blokĉenaj niveloj povas esti konstruitaj sur ĉefa ĉeno, kun ĉiu nivelo uzante gepatro-infanan ligon. La gepatra ĉeno delegas laboron al infanĉenoj kiuj procesas kaj resendas ĝin al la gepatro post kompletigo. La suba baza blokĉeno ne partoprenas en la retaj funkcioj de malĉefaj ĉenoj krom se disputsolvo estas necesa.
La distribuado de laboro sub ĉi tiu modelo reduktas la pretigan ŝarĝon sur la ĉefa ĉeno por eksponente plibonigi skaleblon. La OMG Plasma projekto estas ekzemplo de Layer-2 nestita blokĉena infrastrukturo, kiu estas uzata sur la Layer-1 Ethereum-protokolo por faciligi pli rapidajn kaj pli malmultekostajn transakciojn.
Ŝtataj kanaloj: Ŝtata kanalo faciligas dudirektan komunikadon inter blokĉeno kaj eksterĉenaj transakciaj kanaloj kaj plibonigas ĝeneralan transakcian kapablon kaj rapidecon. Ŝtata kanalo ne postulas validumon de nodoj de la Layer-1-reto. Anstataŭe, ĝi estas reto-najbara rimedo, kiu estas sigelita per uzado de plursubskribo aŭ inteligenta kontraktomekanismo. Kiam transakcio aŭ aro de transakcioj estas kompletigitaj sur ŝtata kanalo, la fina "stato" de la "kanalo" kaj ĉiuj ĝiaj enecaj transiroj estas registritaj al la subesta blokĉeno. La Liquid Network, Celer, Bitcoin Lightning kaj Ethereum's Raiden Network estas ekzemploj de ŝtataj kanaloj. En la komerco de Blockchain Trilemma, ŝtataj kanaloj oferas iom da malcentralizo por atingi pli grandan skaleblon.
Flankĉenoj: Flankĉeno estas blokĉena apuda transakcia ĉeno, kiu estas kutime uzata por grandaj grupaj transakcioj. Flankĉenoj uzas sendependan konsentan mekanismon - t.e., apartan de la origina ĉeno - kiu povas esti optimumigita por rapideco kaj skaleblo. Kun flankĉena arkitekturo, la ĉefa rolo de la ĉefĉeno estas konservi ĝeneralan sekurecon, konfirmi grupajn transakciajn registrojn kaj solvi disputojn. Flankĉenoj estas diferencigitaj de ŝtatkanaloj laŭ kelkaj integritaj manieroj. Unue, flankaj transakcioj ne estas privataj inter partoprenantoj - ili estas publike registritaj al la ĉeflibro. Plue, flankaj sekurecrompoj ne influas la ĉefĉenon aŭ aliajn flankajn ĉenojn. Establi flankĉenon eble postulos grandan fortostreĉon, ĉar la infrastrukturo estas kutime konstruita de la grundo.
Plifortigi la Skaleblecon de Blockchain Networks
Tavolo-1 kaj Tavolo-2-skalaj solvoj estas du flankoj de la sama kripta monero: Ili estas strategioj destinitaj por fari blokĉenajn retojn pli rapidaj kaj pli akomodaj al rapide kreskanta uzantbazo. Ĉi tiuj strategioj ankaŭ ne estas reciproke ekskluzivaj, kaj multaj blokĉenaj retoj esploras kombinaĵojn de Layer-1 kaj Layer-2-skalaj solvoj por atingi pliigitan skaleblon sen oferi taŭgan sekurecon aŭ malcentralizon.
Dankon pro vizito kaj legado de ĉi tiu artikolo! Bonvolu ne forgesi lasi ŝati, komenti kaj dividi!
